Modos Flow - An FPGA-based 13.3-inch USB-C touchscreen e-paper monitor (Crowdfunding) - CNX Software

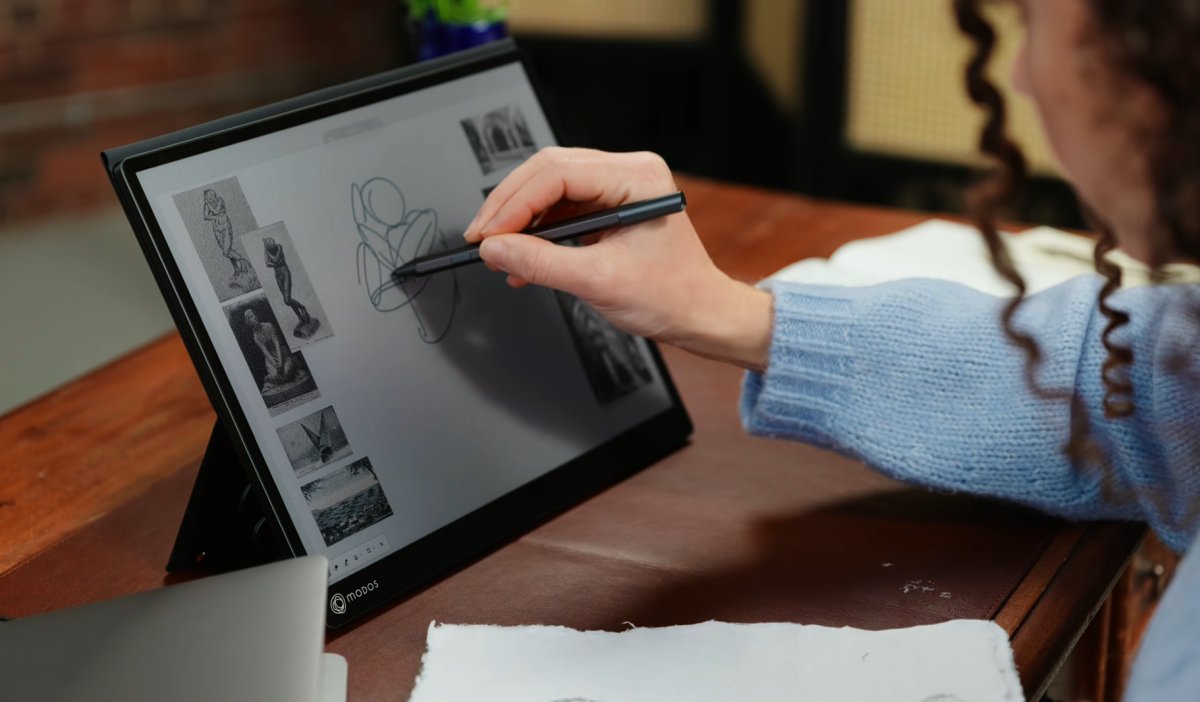

Modos Flow is a paper-like, 13.3-inch USB Type-C touchscreen monochrome or color monitor that builds upon the Modos Paper devkit introduced last year with an AMD/Xilinx Spartan-6 LX16 FPGA and STMicro STM32H750 Arm Cortex-M7 microcontroller.The main difference is that the Modos Flow is more like a consumer product with a full enclosure, a touchscreen, and optional stylus support, 4096-color e-paper display, and frontlight.Modos Flow specifications:

FPGA – AMD Xilinx Spartan-6 LX16 FPGA running Caster gateware like the earlier devkit

MCU – STMicro STM32H750 Arm Cortex-M7 microcontroller for USB communication, firmware upgrades, and standalone applications.

Display

13.3-inch e-paper display with 3200 x 2400 resolution
